1 Import datasets

# R dplyr
library(tidyverse)
library(tictoc)
# Import the two datasets using readr's read_csv funciton
tic()
table_1 = read_csv(file = 'data/table_1.csv')
## Rows: 148916 Columns: 7
## ── Column specification ───────────────────────────────────────────────────────
## Delimiter: ","
## chr (7): pmid, doi, title, source, language, pubtype, pubmodel
##
## ℹ Use `spec()` to retrieve the full column specification for this data.
## ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
table_2 = read_csv(file = 'data/table_2.csv')
## Rows: 148916 Columns: 6
## ── Column specification ───────────────────────────────────────────────────────
## Delimiter: ","
## chr (5): pmid, authors, year_pub, has_data, oa
## dbl (1): cited
##
## ℹ Use `spec()` to retrieve the full column specification for this data.
## ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
cities = read_csv(file = 'data/cities_loc.csv')
## Rows: 13751 Columns: 4
## ── Column specification ───────────────────────────────────────────────────────
## Delimiter: ","
## chr (2): city, country
## dbl (2): lng, lat
##
## ℹ Use `spec()` to retrieve the full column specification for this data.
## ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
toc()
## 0.588 sec elapsed

2 Clean

Remove articles with no pmid and no DOI, and all articles before 1975

# R dplyr

tic()
table_1 = table_1 %>%
  filter(pmid != 'null' & doi != 'null')

table_2 = table_2 %>%
  filter(pmid != 'null' & year_pub > 1975)
toc()
## 0.017 sec elapsed

3 Merge

Merge the two datasets, pmid is unique for each paper

# R dplyr
tic()
final_table = inner_join(table_1, table_2, by = 'pmid')
toc()
## 0.035 sec elapsed
final_table = na.omit(final_table)
final_table
## # A tibble: 108,721 × 12
##    pmid   doi   title source language pubtype pubmodel authors year_pub has_data
##    <chr>  <chr> <chr> <chr>  <chr>    <chr>   <chr>    <chr>   <chr>    <chr>
##  1 32837… 10.1… The … MED    eng      "{\"pu… "\"Prin… <AUTHO… 2020     N
##  2 32196… 10.1… Hypo… MED    eng      "{\"pu… "\"Prin… <AUTHO… 2020     N
##  3 32778… 10.1… The … MED    eng      "{\"pu… "\"Prin… <AUTHO… 2020     N
##  4 32730… 10.1… A co… MED    eng      "{\"pu… "\"Prin… <AUTHO… 2020     N
##  5 32394… 10.1… A gl… MED    eng      "{\"pu… "\"Prin… <AUTHO… 2020     N
##  6 32257… 10.1… COVI… MED    eng      "{\"pu… "\"Elec… <AUTHO… 2020     N
##  7 32720… 10.1… The … MED    eng      "{\"pu… "\"Prin… <AUTHO… 2020     N
##  8 32196… 10.1… Labo… MED    eng      "{\"pu… "\"Prin… <AUTHO… 2020     Y
##  9 32656… 10.1… The … MED    eng      "{\"pu… "\"Prin… <AUTHO… 2020     N
## 10 32732… 10.1… Cycl… MED    eng      "{\"pu… "\"Prin… <AUTHO… 2020     N
## # ℹ 108,711 more rows
## # ℹ 2 more variables: oa <chr>, cited <dbl>

4 Number of authors

Create a new variable with the number of authors for each paper

# R dplyr

tic()
final_table = final_table %>%
  rowwise() %>%
  mutate(nb_aut = str_count(authors, '<AUTHOR>'))
toc()
## 1.291 sec elapsed
final_table = final_table %>%
  filter(nb_aut > 0)

final_table %>%
  select(authors, nb_aut)
## # A tibble: 107,103 × 2
## # Rowwise:
##    authors                                                                nb_aut
##    <chr>                                                                   <int>
##  1 <AUTHOR> Das SK Subir Kumar Das<AFFILIATION>Department of Biochemistr…      1
##  2 <AUTHOR> Lin L Ling Lin<AFFILIATION>Department of Infectious Diseases…      4
##  3 <AUTHOR> Bchetnia M Mbarka Bchetnia<AFFILIATION>Université du Québec …      4
##  4 <AUTHOR> Liu J Jie Liu<AFFILIATION>Department of Anesthesiology, Unio…      7
##  5 <AUTHOR> Yousefi B Bahman Yousefi<AFFILIATION>Department of Immunolog…      6
##  6 <AUTHOR> Shereen MA Muhammad Adnan Shereen<AFFILIATION>The Department…      5
##  7 <AUTHOR> Taverna G Gianluigi Taverna<AFFILIATION>Urology Unit, Humani…     13
##  8 <AUTHOR> Loeffelholz MJ Michael J Loeffelholz<AFFILIATION>Cepheid, Su…      2
##  9 <AUTHOR> Mandal B Bikash Mandal<AFFILIATION>Division of Plant Patholo…      1
## 10 <AUTHOR> Molyvdas A Adam Molyvdas<AFFILIATION>Departments of Anesthes…      2
## # ℹ 107,093 more rows

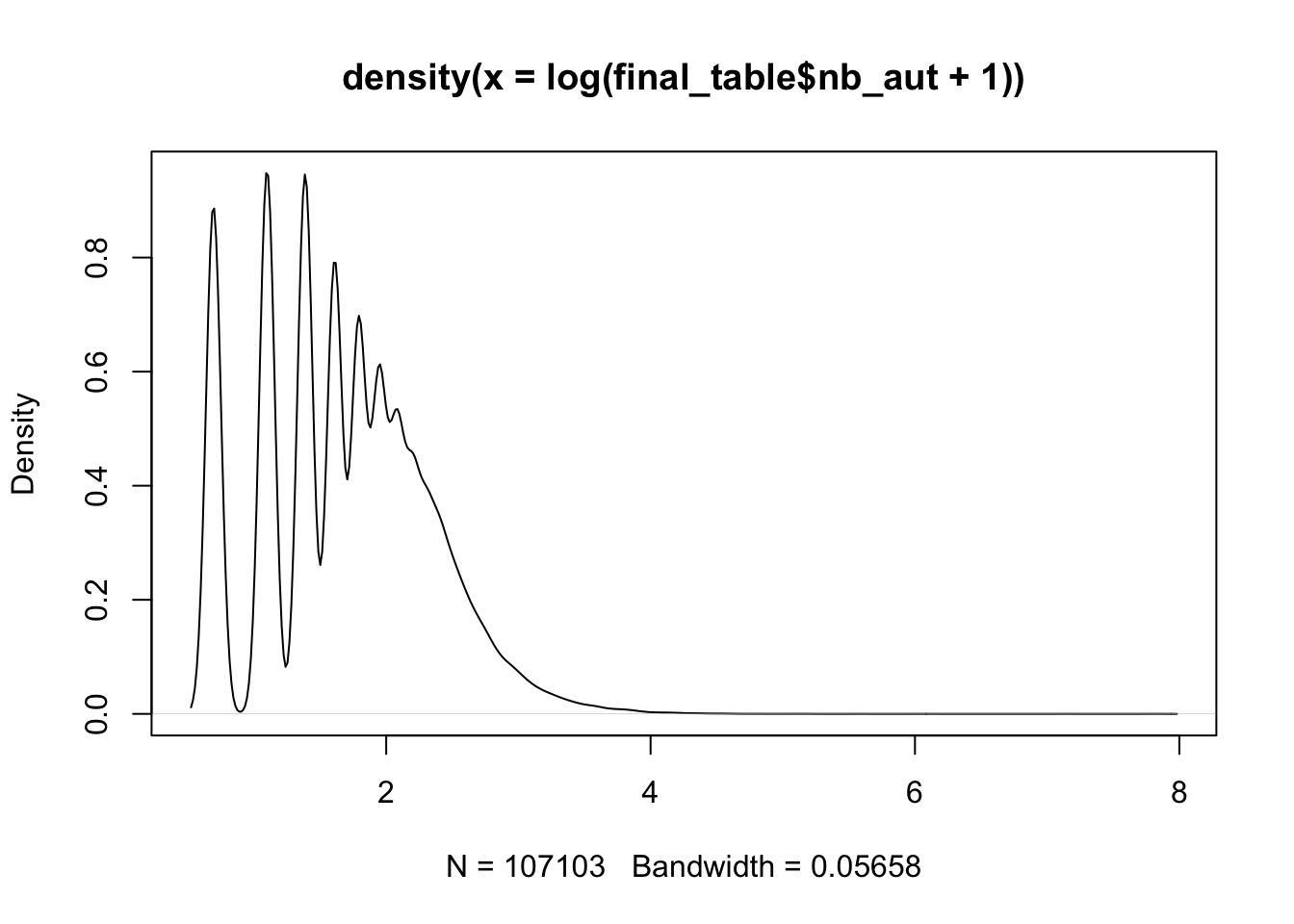

5 plot distribution

plot distribution for the log(number of authors +1)

# R

plot(density(log(final_table$nb_aut+1)))

6 Search for DL/ML/NN in title

How many papers contains ‘deep learning’ or ‘machine learning’ and ‘neural network’ (also with a ‘s’ for neural networks) in their title ? Create a binary variable to save this information. What is the mean of authors for ML papers and non-ML papers ? Transform has_data and oa into binary variable also, what is the share of ML paper that are oa ?

# R dplyr

tic()
final_table = final_table %>%
  mutate(title = tolower(title),
         ML = ifelse(str_detect(title,'deep learning|machine learning|neural networks?'), 1, 0),
         has_data = ifelse(has_data == 'Y', 1, 0),
         oa = ifelse(oa == 'Y', 1, 0))
toc()
## 2.346 sec elapsed
sum(final_table$ML)
## [1] 222
sum(final_table$oa)
## [1] 77847
sum(final_table$has_data)
## [1] 23980
tic()
final_table %>%
  group_by(ML) %>%
  summarize(mean_nb_aut = mean(nb_aut))
## # A tibble: 2 × 2
##      ML mean_nb_aut
##   <dbl>       <dbl>
## 1     0        5.77
## 2     1        6.06
toc()
## 0.005 sec elapsed
tic()
final_table %>%
  group_by(ML) %>%
  summarize(n = sum(oa)/n(),
            citation = mean(cited))
## # A tibble: 2 × 3
##      ML     n citation
##   <dbl> <dbl>    <dbl>
## 1     0 0.727    11.3
## 2     1 0.802     1.05
toc()
## 0.005 sec elapsed

7 Clean up pub_type

Clean up pub_type, for simplicity just get the first type

# R dplyr
tic()
final_table = final_table %>%
  mutate(pub_type = str_match_all(pubtype, '\\[\\"(.*?)\\"')[[1]][2])
toc()
## 1.211 sec elapsed
final_table %>%
  select(pubtype,pub_type)
## # A tibble: 107,103 × 2
## # Rowwise:
##    pubtype                                                              pub_type
##    <chr>                                                                <chr>
##  1 "{\"pubType\": [\"review-article\", \"Review\", \"Journal Article\"… review-…
##  2 "{\"pubType\": [\"review-article\", \"Journal Article\"]}"           review-…
##  3 "{\"pubType\": [\"review-article\", \"Review\", \"Journal Article\"… review-…
##  4 "{\"pubType\": [\"review-article\", \"Review\", \"Journal Article\"… review-…
##  5 "{\"pubType\": [\"review-article\", \"Review\", \"Journal Article\"… review-…
##  6 "{\"pubType\": [\"review-article\", \"Review\", \"Journal Article\"… review-…
##  7 "{\"pubType\": [\"review-article\", \"Review\", \"Journal Article\"… review-…
##  8 "{\"pubType\": [\"review-article\", \"Review\", \"Journal Article\"… review-…
##  9 "{\"pubType\": [\"Editorial\"]}"                                     Editori…
## 10 "{\"pubType\": [\"Editorial\"]}"                                     Editori…
## # ℹ 107,093 more rows

8 Highest mean/sd of citation

What is the pub type with the highest mean/sd of citation ? (use cited and the cleaned pub_type)

# R dplyr

final_table %>%
  group_by(pub_type) %>%
  summarize(mean = mean(cited),
            sd = sd(cited)) %>%
  arrange(desc(mean))
## # A tibble: 83 × 3
##    pub_type                                                  mean    sd
##    <chr>                                                    <dbl> <dbl>
##  1 Consensus Development Conference                          94.1 392.
##  2 Research Support, American Recovery and Reinvestment Act  64.4  77.2
##  3 Research Support, U.S. Gov't, P.H.S.                      54.0  97.1
##  4 Research Support, N.I.H., Intramural                      48.5 144.
##  5 Clinical Trial, Phase II                                  35.3  74.0
##  6 Clinical Conference                                       30.4  84.3
##  7 Comparative Study                                         29.3  57.1
##  8 Controlled Clinical Trial                                 27    49.3
##  9 Research Support, Non-U.S. Gov't                          26.3  67.8
## 10 Clinical Trial                                            24.9  56.6
## # ℹ 73 more rows
final_table %>%
  group_by(pub_type) %>%
  summarize(mean = mean(cited),
            sd = sd(cited)) %>%
  arrange(desc(sd))
## # A tibble: 83 × 3
##    pub_type                                                  mean    sd
##    <chr>                                                    <dbl> <dbl>
##  1 Consensus Development Conference                         94.1  392.
##  2 Research Support, N.I.H., Intramural                     48.5  144.
##  3 Research Support, U.S. Gov't, P.H.S.                     54.0   97.1
##  4 editorial                                                 7.28  90.8
##  5 Clinical Conference                                      30.4   84.3
##  6 Research Support, American Recovery and Reinvestment Act 64.4   77.2
##  7 Clinical Trial, Phase II                                 35.3   74.0
##  8 Research Support, Non-U.S. Gov't                         26.3   67.8
##  9 Video-Audio Media                                        12     61.6
## 10 Comparative Study                                        29.3   57.1
## # ℹ 73 more rows

9 Most representative countres by year ?

What are the most representative country by year ? In another tibble, keep only pmid and authors, and get the country for each author from the loc_cities.csv. You may want to separate rows for each authors to get all countries involved in the paper. If an author have multiple affiliations, take the first one.

# R dplyr
final_table$authors[1]
## [1] "<AUTHOR> Das SK Subir Kumar Das<AFFILIATION>Department of Biochemistry, College of Medicine and JNM Hospital, WBUHS, Kalyani, Nadia, West Bengal 741235 India."
countries = tolower(unique(cities$country))
tic()
countries_tibble = final_table %>%
  select(pmid,authors) %>%
  separate_rows(authors, sep = '<AUTHOR>')
toc()
## 2.987 sec elapsed
countries_tibble %>%
  select(pmid,authors)
## # A tibble: 725,396 × 2
##    pmid     authors
##    <chr>    <chr>
##  1 32837036 ""
##  2 32837036 " Das SK Subir Kumar Das<AFFILIATION>Department of Biochemistry, Co…
##  3 32196410 ""
##  4 32196410 " Lin L Ling Lin<AFFILIATION>Department of Infectious Diseases, Pek…
##  5 32196410 " Lu L Lianfeng Lu<AFFILIATION>Department of Infectious Diseases, P…
##  6 32196410 " Cao W Wei Cao<AFFILIATION>Department of Infectious Diseases, Peki…
##  7 32196410 " Li T Taisheng Li<AFFILIATION>Department of Infectious Diseases, P…
##  8 32778421 ""
##  9 32778421 " Bchetnia M Mbarka Bchetnia<AFFILIATION>Université du Québec à Chi…
## 10 32778421 " Girard C Catherine Girard<AFFILIATION>Université du Québec à Chic…
## # ℹ 725,386 more rows
tic()
countries_tibble = countries_tibble %>%
  rowwise() %>%
  filter(authors !="" & !str_detect(authors, '<AFFILIATION>None'))
toc()
## 7.707 sec elapsed
countries_tibble %>%
  select(pmid,authors)
## # A tibble: 476,357 × 2
## # Rowwise:
##    pmid     authors
##    <chr>    <chr>
##  1 32837036 " Das SK Subir Kumar Das<AFFILIATION>Department of Biochemistry, Co…
##  2 32196410 " Lin L Ling Lin<AFFILIATION>Department of Infectious Diseases, Pek…
##  3 32196410 " Lu L Lianfeng Lu<AFFILIATION>Department of Infectious Diseases, P…
##  4 32196410 " Cao W Wei Cao<AFFILIATION>Department of Infectious Diseases, Peki…
##  5 32196410 " Li T Taisheng Li<AFFILIATION>Department of Infectious Diseases, P…
##  6 32778421 " Bchetnia M Mbarka Bchetnia<AFFILIATION>Université du Québec à Chi…
##  7 32778421 " Girard C Catherine Girard<AFFILIATION>Université du Québec à Chic…
##  8 32778421 " Duchaine C Caroline Duchaine<AFFILIATION>Centre de recherche, Ins…
##  9 32778421 " Laprise C Catherine Laprise<AFFILIATION>Université du Québec à Ch…
## 10 32730205 " Liu J Jie Liu<AFFILIATION>Department of Anesthesiology, Union Hos…
## # ℹ 476,347 more rows
tic()
countries_tibble = countries_tibble %>%
  group_by(pmid,authors) %>%
  mutate(authors = unlist(str_split(authors, '<AFFILIATION>'))[2]) %>%
  filter(!duplicated(pmid, authors))
toc()
## 8.662 sec elapsed
countries_tibble %>%
  select(pmid,authors)
## # A tibble: 291,650 × 2
## # Groups:   pmid, authors [291,650]
##    pmid     authors
##    <chr>    <chr>
##  1 32837036 "Department of Biochemistry, College of Medicine and JNM Hospital, …
##  2 32196410 "Department of Infectious Diseases, Peking Union Medical College Ho…
##  3 32196410 "Department of Infectious Diseases, Peking Union Medical College Ho…
##  4 32778421 "Université du Québec à Chicoutimi (UQAC), Département des sciences…
##  5 32778421 "Centre de recherche, Institut universitaire de cardiologie et de p…
##  6 32778421 "Université du Québec à Chicoutimi (UQAC), Département des sciences…
##  7 32730205 "Department of Anesthesiology, Union Hospital, Tongji Medical Colle…
##  8 32730205 "Department of Anesthesiology, Union Hospital, Tongji Medical Colle…
##  9 32394467 "Department of Immunology, Semnan University of Medical Sciences, S…
## 10 32394467 "Department of Bacteriology and Virology, Semnan University of Medi…
## # ℹ 291,640 more rows
# R dplyr
tic()
countries_tibble  = countries_tibble %>%
  mutate(authors = str_replace_all(authors, ' USA', 'United States'),
         authors = str_replace_all(authors, ' UK', 'United Kingdom'),
         authors = str_replace_all(authors, ' Korea', 'South Korea'),
         authors = tolower(authors))
toc()
## 34.33 sec elapsed
pattern = paste0("\\b(", paste(countries, collapse = "|"), ")\\b")
tic()
countries_tibble <- countries_tibble %>%
  group_by(pmid,authors) %>%
  mutate(country = str_extract(authors, pattern)) %>%
  select(-authors)
## Adding missing grouping variables: `authors`
toc()
## 29.709 sec elapsed
tic()
countries_tibble = countries_tibble %>%
  filter(country != '') %>%
  distinct(pmid, country)
toc()
## 1.165 sec elapsed
countries_tibble
## # A tibble: 249,182 × 3
## # Groups:   pmid, authors [249,182]
##    authors                                                         pmid  country
##    <chr>                                                           <chr> <chr>
##  1 "department of biochemistry, college of medicine and jnm hospi… 3283… india
##  2 "department of infectious diseases, peking union medical colle… 3219… china
##  3 "department of infectious diseases, peking union medical colle… 3219… china
##  4 "université du québec à chicoutimi (uqac), département des sci… 3277… canada
##  5 "centre de recherche, institut universitaire de cardiologie et… 3277… canada
##  6 "université du québec à chicoutimi (uqac), département des sci… 3277… canada
##  7 "department of anesthesiology, union hospital, tongji medical … 3273… china
##  8 "department of anesthesiology, union hospital, tongji medical … 3273… china
##  9 "department of immunology, semnan university of medical scienc… 3239… iran
## 10 "department of bacteriology and virology, semnan university of… 3239… iran
## # ℹ 249,172 more rows
tic()
countries_tibble = left_join(countries_tibble,
                             final_table[,c('pmid','year_pub')],
                             by = 'pmid')
toc()
## 0.122 sec elapsed
tic()
countries_pub = countries_tibble %>%
  group_by(country, year_pub) %>%
  summarize(n = length(unique(pmid))) %>%
  arrange(desc(n))
## `summarise()` has grouped output by 'country'. You can override using the
## `.groups` argument.
toc()
## 0.019 sec elapsed
countries_pub
## # A tibble: 1,964 × 3
## # Groups:   country [198]
##    country        year_pub     n
##    <chr>          <chr>    <int>
##  1 united states  2020     10670
##  2 china          2020      7894
##  3 united kingdom 2020      6058
##  4 italy          2020      5933
##  5 india          2020      3199
##  6 france         2020      2639
##  7 canada         2020      2342
##  8 germany        2020      2108
##  9 australia      2020      2058
## 10 spain          2020      2014
## # ℹ 1,954 more rows

10 Country bar plot with plotly

Select the top 25 of countries involved in coronavirus research since 2001, plot the evolution on a bar chart with plot_ly

Two usefull links:

# R
library(plotly)
library(kableExtra)
##
## Attaching package: 'kableExtra'
## The following object is masked from 'package:dplyr':
##
##     group_rows
plot_top_n  = function(n_top,year){

  countries_top = countries_pub %>%
    filter(year_pub >= year) %>%
    group_by(country) %>%
    summarize(n = sum(n)) %>%
    arrange(desc(n)) %>%
    ungroup() %>%
    slice(1:n_top)

  table = countries_top %>%
    kbl(caption = "Top 25 most active countries in coronavirus research  (2001-2021)") %>%
    kable_classic(full_width = F, html_font = "Cambria")

  graph = countries_pub %>%
    filter(country %in% as.matrix(countries_top$country) & year_pub >= year) %>%
    plot_ly(x = ~year_pub, y = ~n, color = ~country) %>%
    layout(yaxis = list(title = 'Count',type = 'log'), barmode = 'stack')
  print(table)
  print(graph)
}

plot_top_n(10,2001)
## <table class=" lightable-classic" style="font-family: Cambria; width: auto !important; margin-left: auto; margin-right: auto;">
## <caption>Top 25 most active countries in coronavirus research  (2001-2021)</caption>
##  <thead>
##   <tr>
##    <th style="text-align:left;"> country </th>
##    <th style="text-align:right;"> n </th>
##   </tr>
##  </thead>
## <tbody>
##   <tr>
##    <td style="text-align:left;"> united states </td>
##    <td style="text-align:right;"> 20582 </td>
##   </tr>
##   <tr>
##    <td style="text-align:left;"> china </td>
##    <td style="text-align:right;"> 13242 </td>
##   </tr>
##   <tr>
##    <td style="text-align:left;"> united kingdom </td>
##    <td style="text-align:right;"> 8388 </td>
##   </tr>
##   <tr>
##    <td style="text-align:left;"> italy </td>
##    <td style="text-align:right;"> 6957 </td>
##   </tr>
##   <tr>
##    <td style="text-align:left;"> france </td>
##    <td style="text-align:right;"> 4017 </td>
##   </tr>
##   <tr>
##    <td style="text-align:left;"> india </td>
##    <td style="text-align:right;"> 3981 </td>
##   </tr>
##   <tr>
##    <td style="text-align:left;"> canada </td>
##    <td style="text-align:right;"> 3922 </td>
##   </tr>
##   <tr>
##    <td style="text-align:left;"> germany </td>
##    <td style="text-align:right;"> 3655 </td>
##   </tr>
##   <tr>
##    <td style="text-align:left;"> australia </td>
##    <td style="text-align:right;"> 3181 </td>
##   </tr>
##   <tr>
##    <td style="text-align:left;"> spain </td>
##    <td style="text-align:right;"> 2852 </td>
##   </tr>
## </tbody>
## </table>
## No trace type specified:
##   Based on info supplied, a 'bar' trace seems appropriate.
##   Read more about this trace type -> https://plotly.com/r/reference/#bar
